Device Onboarding

Anava's Device Onboarding system provides secure, automated provisioning for Axis cameras using industry-standard PKI authentication. Devices are authenticated using their factory-installed Axis device ID certificates, ensuring only legitimate hardware can join your fleet.

Key Capabilities​

FeatureDescription
Zero-trust AuthenticationEvery device authenticated via PKI before joining
802.1AR ComplianceUses Axis factory-installed device ID certificates
Automated ProvisioningOne-click enrollment from the Console
Multi-path BootstrapMQTT primary, HTTP fallback for network diversity
Audit TrailComplete record of all provisioning events

How It Works​

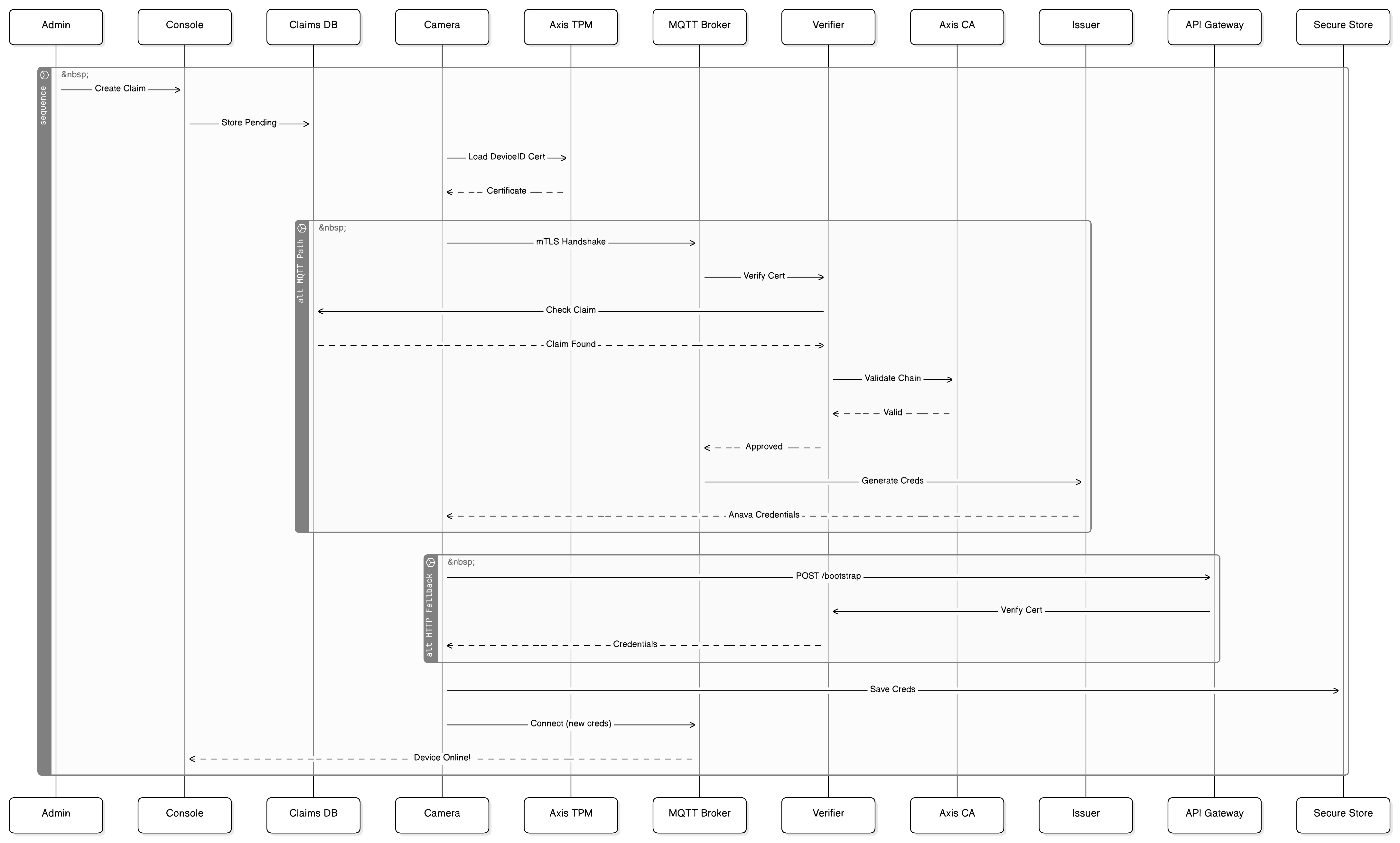

Device Onboarding Overview

Authentication Flow​

Step 1: Device Identity​

Every Axis camera ships with a factory-installed Axis Device ID certificate. This certificate:

  • Is burned into the device's secure element at manufacturing
  • Cannot be extracted or cloned
  • Is signed by the Axis Device ID CA chain
  • Uniquely identifies the device by serial number

Step 2: Claim Request​

When you claim a device in the Console:

  1. Enter the device serial number (from label or web UI)
  2. Assign to a device group
  3. Generate a one-time provisioning token

Step 3: Bootstrap​

When the ACAP boots, it initiates the bootstrap process:

Bootstrap Flow

Step 4: Certificate Verification​

The cloud performs rigorous verification:

CheckDescription
Chain ValidationCertificate chains to Axis Root CA
RevocationCertificate not on revocation list
Serial MatchCertificate serial matches claim
Time ValidCertificate not expired
SignatureCryptographic signature valid

Step 5: Credential Issuance​

Upon successful verification, the device receives:

  • MQTT Client Certificate: For ongoing mTLS connection
  • Broker Configuration: Hostname, port, topics
  • Group Assignment: Detection configuration to apply
  • Device Token: For cloud API access

Bootstrap Methods​

Primary: MQTT Bootstrap​

Uses the MQTT broker's authentication endpoint with TLS client certificates:

Port: 8884 (MQTT over TLS with client cert)
Protocol: MQTT 3.1.1
Auth: Axis DeviceID certificate as client cert

Fallback: HTTP Bootstrap​

When MQTT is unavailable (firewall, outage), devices use HTTP:

Endpoint: https://api.anava.ai/v1/devices/bootstrap
Method: POST
Auth: Mutual TLS with Axis DeviceID certificate

The HTTP fallback ensures devices can still provision even if:

  • MQTT port (8884) is blocked by corporate firewall
  • MQTT broker is temporarily unavailable
  • Network only allows HTTPS traffic

Certificate Chain​

Axis device certificate chain

Provisioning States​

StateDescriptionConsole Display
UnclaimedDevice not known to system-
PendingClaim created, awaiting device🟡 Pending
BootstrappingDevice connecting, verifying🟡 Connecting
ProvisionedCredentials issued successfully🟢 Online
FailedVerification failed🔴 Failed
RejectedCertificate invalid or revoked🔴 Rejected

Security Features​

Mutual TLS (mTLS)​

All bootstrap communications use mutual TLS:

  • Server presents valid certificate (Let's Encrypt or Google Trust)
  • Device presents Axis DeviceID certificate
  • Both parties verify the other

One-Time Tokens​

Provisioning tokens:

  • Expire after 24 hours
  • Single-use (consumed on successful provision)
  • Tied to specific serial number
  • Can be revoked before use

Credential Storage​

On-device credentials are stored securely:

  • Encrypted at rest
  • Stored in ACAP's private storage
  • Inaccessible to other applications
  • Cleared on ACAP uninstall

Troubleshooting​

Device Stuck in "Pending"​

  1. Verify device has network connectivity
  2. Check that ACAP is installed and running
  3. Ensure device can reach mqtt.anava.ai:8884 or api.anava.ai:443
  4. Verify serial number matches exactly

"Certificate Verification Failed"​

  1. Device may have older firmware without DeviceID cert
  2. Check camera firmware is 10.x or later
  3. Contact Axis support if certificate missing

"Claim Expired"​

  1. Create new claim in Console
  2. Claims expire after 24 hours for security
  3. No limit on number of claim attempts

Requirements​

RequirementDetails
CameraAxis network camera with 802.1AR support
FirmwareAXIS OS 10.0 or later
NetworkHTTPS (443) or MQTT (8884) to Anava Cloud
ACAPAnava Agent v2.0 or later

Last updated: December 2025
