Trigger Types Reference

This reference documents all trigger types available in Anava Detections, their configuration options, and technical details.

Trigger Overview

Trigger	Event Source	Camera Requirement	Use Case
None	Disabled	Any	Detection inactive
Motion	Camera VMD (legacy)	All cameras	General detection
VMD4	AXIS VMD4	VMD4-capable	Modern motion detection
Object	AXIS Object Analytics	AOAS-capable	Pre-filtered (legacy)
ObjectAnalytics	AXIS Object Analytics	AOAS-capable	Pre-filtered detections
Perimeter	AOAS Scenarios	AOAS-capable	Boundary monitoring
PerimeterDefender	Advanced AOAS	Perimeter Defender	High-security
DigitalInput	Physical I/O	Has I/O ports	External sensors
Manual	Virtual Input	All cameras	VMS/API initiated
Schedule	Timer	All cameras	Continuous polling
Pulse	Camera Scheduler	All cameras	Interval-based capture

None

Description

Disables the profile entirely. No events are processed.

Configuration

Trigger:
  Type: None

Use Cases

• Temporarily disable profile
• Archived/unused profiles
• Template profiles

---

Motion

Description

Uses camera's built-in Video Motion Detection (VMD). Triggers on any pixel change above threshold.

Configuration

Trigger:
  Type: Motion

No additional parameters required.

Technical Details

Aspect	Detail
Event Type	Motion Window
Latency	~100ms
ONVIF Topic	tns1:VideoAnalytics/tnsaxis:MotionDetection
Camera Setting	System → Events → Device Events → Motion

Considerations

• Higher false positive rate
• Triggered by shadows, lighting changes, weather
• All motion generates events
• Consider using with skill pre-filter

Best For

• Cameras without AOAS
• Detecting any movement
• Low-traffic areas
• Backup/secondary trigger

---

Object

Description

Uses AXIS Object Analytics (AOAS) for object classification before triggering Anava.

Configuration

Trigger:
  Type: Object
  Profile: person  # AOAS scenario name

Profile Values

Value	Detects	AOAS Scenario
person	Humans	Object in Area (Human)
vehicle	Cars, trucks	Object in Area (Vehicle)
face	Faces	Face Detection
any	Any object	Any AOAS event

Technical Details

Aspect	Detail
Event Type	Object Analytics
Latency	~200-500ms
ONVIF Topic	tns1:RuleEngine/tnsaxis:ObjectAnalytics/...
Camera Setting	Apps → AXIS Object Analytics

Prerequisites

1. AOAS installed and running on camera
2. Scenario configured matching profile value
3. Camera firmware 10.9+ recommended

Scenario Mapping

Anava profile value maps to AOAS scenario type:

Profile: person  →  AOAS Scenario: "Object in Area" with Human filter
Profile: vehicle →  AOAS Scenario: "Object in Area" with Vehicle filter

---

Perimeter

Description

Triggers on AOAS perimeter scenarios (line crossing, zone intrusion).

Configuration

Trigger:
  Type: Perimeter
  Profile: crossline  # Scenario type
  ID: scenario-1      # Specific scenario (optional)

Profile Values

Value	Detection	AOAS Scenario
crossline	Line crossing	Crossline Detection
intrusion	Zone entry	Object in Area
loitering	Time in area	Time in Area

Technical Details

Aspect	Detail
Event Type	Rule Engine Trigger
Latency	~200-500ms
ONVIF Topic	tns1:RuleEngine/tnsaxis:ObjectAnalytics/Device1Scenario1

ID Parameter

Use ID to select specific scenario when multiple configured:

# Camera has three scenarios:
# scenario-1: Main entrance line
# scenario-2: Emergency exit line
# scenario-3: Loading dock zone

Trigger:
  Type: Perimeter
  Profile: crossline
  ID: scenario-1  # Only triggers on main entrance

---

PerimeterDefender

Description

Advanced perimeter detection with AXIS Perimeter Defender application.

Configuration

Trigger:
  Type: PerimeterDefender
  Profile: intrusion-zone-1
  ID: scenario-name

Technical Details

Aspect	Detail
Event Type	Perimeter Defender Event
Latency	~200-500ms
ONVIF Topic	tns1:RuleEngine/tnsaxis:PerimeterDefender/...
Requirement	AXIS Perimeter Defender license

Features

• Long-range detection (thermal support)
• Advanced filtering (reduces false alarms)
• Radar integration capable
• Complex scenario support

Prerequisites

1. AXIS Perimeter Defender license
2. Application installed on camera
3. Scenarios configured
4. Camera placement optimized

---

DigitalInput

Description

Triggers on physical I/O port signal from external sensors.

Configuration

Trigger:
  Type: DigitalInput
  Port: 1  # I/O port number (1-8)

Technical Details

Aspect	Detail
Event Type	I/O Port Event
Latency	~50ms
ONVIF Topic	tns1:Device/tnsaxis:IO/DigitalInput
Camera Setting	System → I/O Ports

Port Configuration

Configure port in camera settings:

Setting	Options
Direction	Input
Name	Descriptive name
Normal State	Open or Closed
Active State	Open or Closed

Wiring Types

Type	Description	Use Case
NO (Normally Open)	Circuit open at rest	Door open sensor
NC (Normally Closed)	Circuit closed at rest	Door closed sensor

Common Connections

Port	Typical Sensor
Port 1	Door contact
Port 2	PIR sensor
Port 3	Alarm panel
Port 4	Access control

---

Manual

Description

Virtual input triggered via HTTP/VAPIX or VMS action.

Configuration

Trigger:
  Type: Manual
  Port: 6  # Virtual input port (typically 6)

Technical Details

Aspect	Detail
Event Type	Virtual Input
Latency	~100ms
Control	HTTP request

Activation

Activate (trigger analysis):

GET http://[camera-ip]/axis-cgi/io/virtualinput.cgi?action=6%3A%2F

Deactivate (reset):

GET http://[camera-ip]/axis-cgi/io/virtualinput.cgi?action=6%3A%5C

VMS Integration

Configure VMS to send HTTP request:

1. Create action rule in VMS
2. Action type: HTTP request
3. Target: Camera IP
4. URL: Virtual input activation

Use Cases

• Operator-initiated verification
• VMS-driven analysis
• API-triggered assessment
• On-demand checks
• Integration with external systems

---

Schedule

Description

Time-based polling without external events. Uses Active Monitoring settings.

Configuration

Trigger:
  Type: Schedule

Active Monitoring:
  Enabled: true
  IntervalMs: 60000  # Every 60 seconds
  MaxDurationSec: 0  # Continuous (no timeout)

Technical Details

Aspect	Detail
Event Type	Timer
Latency	N/A (polling based)
Requirement	Active Monitoring enabled

Polling Modes

Mode	Configuration	Behavior
Continuous	MaxDurationSec: 0	Polls indefinitely
Windowed	MaxDurationSec: 300	Polls for 5 minutes, pauses

Use Cases

• Continuous monitoring
• Occupancy tracking
• Queue monitoring
• Regular status checks
• Behavioral analysis
• Scene verification

---

VMD4

Description

Modern motion detection using AXIS VMD4 application. Provides improved accuracy over legacy VMD with configurable detection profiles.

Configuration

Trigger:
  Type: VMD4
  Profile: 1  # VMD4 profile number (1-10)

Technical Details

Aspect	Detail
Event Type	VMD4 Motion Event
Latency	~100ms
ONVIF Topic	tns1:RuleEngine/tnsaxis:VMD4/vmd4_video_1
Camera Setting	Apps > AXIS Video Motion Detection 4

Prerequisites

1. AXIS VMD4 application installed on camera
2. Detection profile configured with zones
3. Camera firmware 10.0+ recommended

Best For

• Modern cameras with VMD4 support
• Configurable motion zones
• Improved detection accuracy over legacy VMD

---

ObjectAnalytics

Description

Uses AXIS Object Analytics (AOA) for object classification. This is the preferred method for pre-filtered detection on modern cameras.

Configuration

Trigger:
  Type: ObjectAnalytics
  Profile: Device1Scenario1  # AOA scenario reference

Technical Details

Aspect	Detail
Event Type	Object Analytics Event
Latency	~200-500ms
ONVIF Topic	tns1:RuleEngine/tnsaxis:ObjectAnalytics/Device1Scenario*
Camera Setting	Apps > AXIS Object Analytics

Scenario Configuration

Configure scenarios in camera's AXIS Object Analytics app:

Scenario Type	Description
Object in Area	Detect humans/vehicles in zone
Line Crossing	Object crosses virtual line
Time in Area	Object present for duration
Occupancy	Count objects in zone

Best For

• Pre-filtering before AI analysis (reduces costs)
• Human/vehicle classification
• Complex scenario rules
• Modern AOAS-capable cameras

---

Pulse

Description

Camera-based scheduler for interval-based image capture. Uses the camera's built-in pulse scheduling for timed captures.

Configuration

Trigger:
  Type: Pulse
  ID: 0  # Pulse schedule number (0-10)

Technical Details

Aspect	Detail
Event Type	Pulse Schedule Event
Latency	~50ms from schedule
Camera Setting	System > Events > Schedules

Schedule Configuration

Configure pulse schedules in camera settings:

1. Navigate to System > Events > Schedules
2. Create a Pulse schedule
3. Set interval (e.g., every 60 seconds)
4. Reference schedule ID in Detection config

Use Cases

• Regular status checks
• Time-lapse analysis
• Periodic scene verification
• Low-bandwidth monitoring

---

Trigger Comparison

Event Characteristics

Trigger	Pre-filtered	Reliability	Setup Complexity
Motion	No	High	Low
VMD4	No	High	Low
Object	Yes	High	Medium
ObjectAnalytics	Yes	High	Medium
Perimeter	Yes	High	Medium
PerimeterDefender	Yes	Very High	High
DigitalInput	N/A	Very High	Medium
Manual	N/A	Very High	Low
Schedule	N/A	Very High	Low
Pulse	N/A	Very High	Low

Cost Implications

Trigger	Events/Hour (typical)	Analysis Cost
Motion	50-500	High
VMD4	50-500	High
Object	5-50	Low-Medium
ObjectAnalytics	5-50	Low-Medium
Perimeter	1-20	Low
DigitalInput	1-10	Very Low
Manual	0-10	Very Low
Schedule	1-60 (configurable)	Medium
Pulse	1-60 (configurable)	Medium

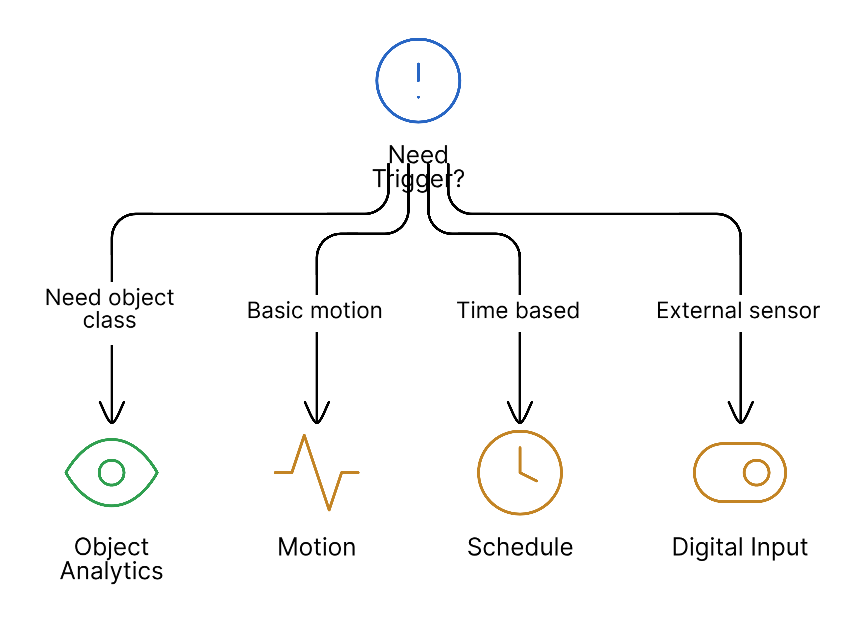

Selection Guide

ONVIF Event Mapping

Event Topics

Trigger Type	ONVIF Topic Pattern
Motion	tns1:VideoAnalytics/tnsaxis:MotionDetection
VMD4	tns1:RuleEngine/tnsaxis:VMD4/vmd4_video_*
Object	tns1:RuleEngine/tnsaxis:ObjectAnalytics/*
ObjectAnalytics	tns1:RuleEngine/tnsaxis:ObjectAnalytics/Device1Scenario*
Perimeter	tns1:RuleEngine/tnsaxis:ObjectAnalytics/Device1Scenario*
DigitalInput	tns1:Device/tnsaxis:IO/DigitalInput
Manual	tns1:Device/tnsaxis:IO/VirtualInput
Pulse	tns1:Device/tnsaxis:Pulse/*

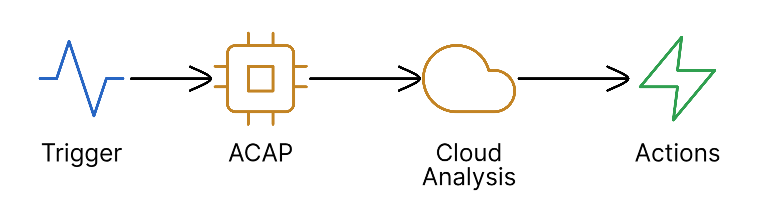

Event Flow
