ONVIF Events Reference

Anava Detections emit ONVIF events for VMS integration. This reference documents event structure, topics, and integration patterns.

ONVIF Event Basics

What is ONVIF?

ONVIF (Open Network Video Interface Forum) is an industry standard for IP-based security products. Anava uses ONVIF for:

• Emitting Detection events to VMS
• Subscribing to camera events (triggers)
• Standardized device discovery

Event Flow

Event Structure

Standard Fields

Every Anava ONVIF event contains:

Field	Type	Description
Topic	String	Event namespace and type
Source	String	Camera serial number
Key	String	Unique event identifier
Timestamp	DateTime	When event occurred (UTC)
State	Boolean	True (detected) or False (cleared)
IsProperty	Boolean	True for stateful events

Example Event

<wsnt:NotificationMessage>
  <wsnt:Topic>
    tns1:RuleEngine/tnsaxis:AnavaAI/person_detected
  </wsnt:Topic>
  <wsnt:Message>
    <tt:Message UtcTime="2024-01-15T14:32:15Z" PropertyOperation="Changed">
      <tt:Source>
        <tt:SimpleItem Name="device" Value="ACCC8E123456"/>
        <tt:SimpleItem Name="profile" Value="security-entrance"/>
      </tt:Source>
      <tt:Key>
        <tt:SimpleItem Name="object" Value="person_detected"/>
      </tt:Key>
      <tt:Data>
        <tt:SimpleItem Name="State" Value="true"/>
        <tt:SimpleItem Name="confidence" Value="95"/>
      </tt:Data>
    </tt:Message>
  </wsnt:Message>
</wsnt:NotificationMessage>

Event Topics

Topic Namespace

Anava events use the namespace:

tns1:RuleEngine/tnsaxis:AnavaAI/{object_or_question}

Topic Structure

Component	Description
tns1:RuleEngine	ONVIF rule engine namespace
tnsaxis:AnavaAI	Axis/Anava analytics namespace
{name}	Object or question name from Skill

Topic Examples

Detection Result	Topic
Person detected	tns1:RuleEngine/tnsaxis:AnavaAI/person
Vehicle detected	tns1:RuleEngine/tnsaxis:AnavaAI/vehicle
Hard hat missing	tns1:RuleEngine/tnsaxis:AnavaAI/no_hard_hat
Unauthorized access	tns1:RuleEngine/tnsaxis:AnavaAI/unauthorized

Stateful vs Stateless Events

Stateful Events

Configured with stateful: true in skill objects/questions.

State	Meaning
true	Object detected / Condition met
false	Object cleared / Condition ended

Use for:

• VMS alarm acknowledgment
• Recording start/stop
• Output activation

Stateless Events

Objects/questions without stateful: true.

• Single event per detection
• No automatic clear
• Use for logging, notifications

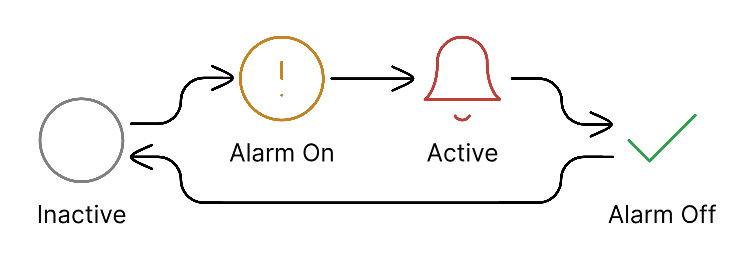

Event Lifecycle

Event Data

Standard Data Fields

Field	Type	Always Present	Description
State	Boolean	Yes	Detection state
confidence	Integer	Yes	Detection confidence (0-100)
timestamp	DateTime	Yes	Event time

Object Detection Data

<tt:Data>
  <tt:SimpleItem Name="State" Value="true"/>
  <tt:SimpleItem Name="confidence" Value="95"/>
  <tt:SimpleItem Name="object_type" Value="person"/>
</tt:Data>

Question Answer Data

<tt:Data>
  <tt:SimpleItem Name="State" Value="true"/>
  <tt:SimpleItem Name="confidence" Value="88"/>
  <tt:SimpleItem Name="answer" Value="no"/>
  <tt:SimpleItem Name="question_id" Value="authorized_access"/>
</tt:Data>

VMS Subscription

Subscription Methods

Method	Description	Use Case
Basic	Pull-based polling	Simple integrations
Real-time	Push notifications	Production VMS

Basic Subscription

VMS polls camera for events:

POST /onvif/events/pullpoint_subscription
<CreatePullPointSubscription>
  <Filter>
    <TopicExpression>
      tns1:RuleEngine/tnsaxis:AnavaAI/*
    </TopicExpression>
  </Filter>
</CreatePullPointSubscription>

Topic Filtering

Subscribe to specific events:

Filter	Receives
tnsaxis:AnavaAI/*	All Anava events
tnsaxis:AnavaAI/person	Person detection only
tnsaxis:AnavaAI/no_*	All "no_" prefix events

VMS Integration Examples

Milestone XProtect

Event Mapping:

Anava Event: person_detected
XProtect: Analytics Event → person_detected
Action: Start recording, send notification

Configuration:

1. Add device → Events tab
2. Find AnavaAI events
3. Create action rule using event

Genetec Security Center

Event Mapping:

Anava Event: unauthorized
Genetec: Custom Event → unauthorized_access
Action: Display alarm, notify operators

Configuration:

1. System → Custom Events
2. Map ONVIF topic to Genetec event
3. Create event-to-action in Alarm Management

Axis Camera Station

Native Integration:

• ACS auto-discovers Anava events
• Events appear in device event list
• Direct action rule creation

Event Timing

Detection to Event Latency

Phase	Typical Duration
Trigger to capture	100-500ms
Image upload	100-300ms
AI analysis	500-2000ms
Event emission	50-100ms
Total	750-2900ms

State Change Timing

For stateful events:

Transition	Timing
Detected → True	Immediate on detection
Detected → False	When object no longer detected
Timeout → False	After consecutive non-detections

Troubleshooting

Events Not Reaching VMS

1. Check VMS subscription

   • VMS subscribed to camera?
   • Correct topic filter?

2. Check camera

   • ONVIF enabled?
   • User has event permissions?

3. Check Anava Detection

   • Object/question is stateful?
   • Detection occurring?

Wrong Event Data

1. Check Skill configuration

   • Object name matches expected
   • Stateful flag correct

2. Check Detection

   • Confidence threshold not filtering
   • Schedule is active

Duplicate Events

1. Check Detection frequency

   • Multiple rapid Detections normal
   • Consider talkdown buffer

2. Check VMS de-duplication

   • Some VMS may show each event
   • Configure event grouping

Event Reference

Common Object Events

Object	Topic	State Meaning
person	.../AnavaAI/person	Person in scene
vehicle	.../AnavaAI/vehicle	Vehicle in scene
face	.../AnavaAI/face	Face detected
weapon	.../AnavaAI/weapon	Weapon visible
fire	.../AnavaAI/fire	Fire/smoke detected

Common Question Events

Question	Topic	State Meaning
authorized	.../AnavaAI/authorized	Access is authorized
hard_hat	.../AnavaAI/hard_hat	Wearing hard hat
vest	.../AnavaAI/vest	Wearing safety vest
badge	.../AnavaAI/badge	Badge visible
loitering	.../AnavaAI/loitering	Person loitering

Special Events

Event	Description
system_online	ACAP started
system_offline	ACAP stopping
analysis_error	Analysis failed
connection_lost	Cloud connection lost
